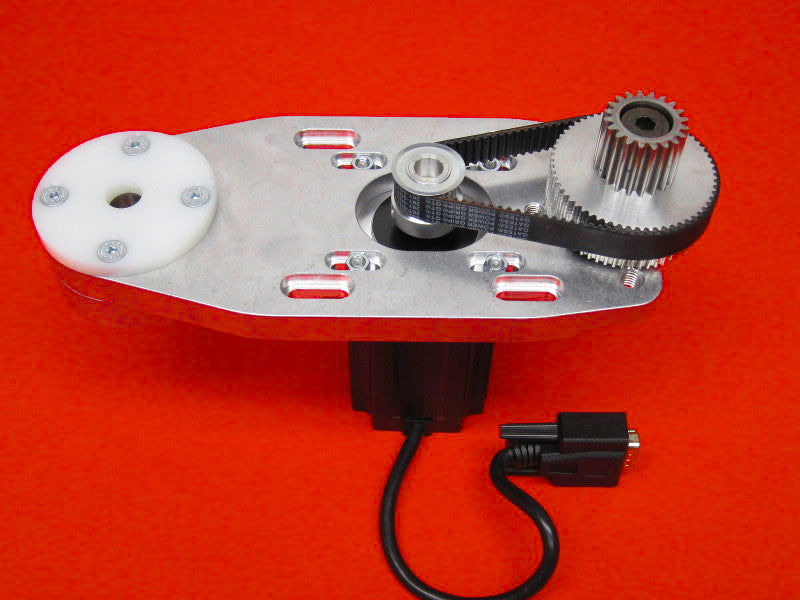

PRO Rack and Pinion Drive, NEMA 23

Vendor
Extrusion and CNC
Regular price
$400.00
Sale price
$400.00
Regular price
Sold out
Unit price
per

PRO series rack and pinion drives offer tighter interfaces and higher accuracy than our standard line, with the following features:

  • Ball bearing pivot interface.
  • Super-oilite bushing and matched precision ground spindle shaft.
  • High resolution 3:1 for NEMA 23 motors.
  • Unique EZ-tension mechanism for simple adjustment of gear to rack pre-loading.
  • Stepper Drive not included

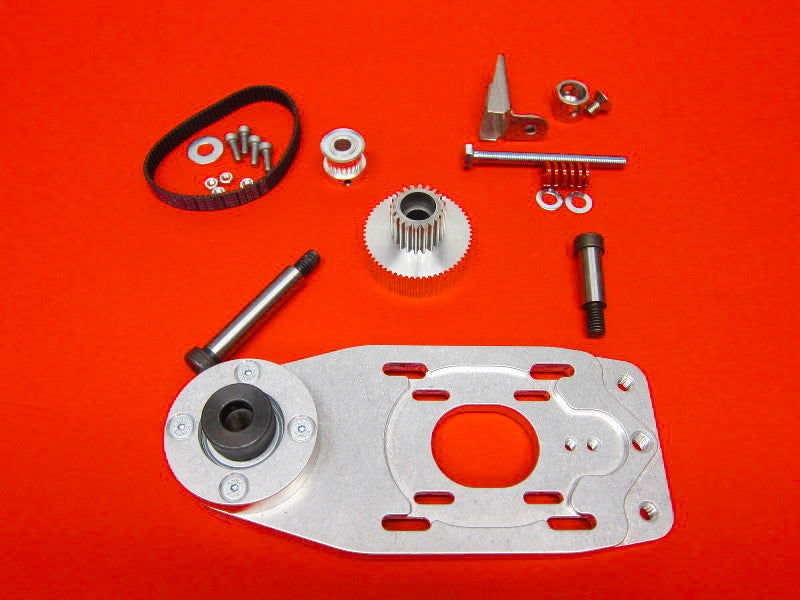

Package includes:

  • Rack and Pinion drive plate with universal mounting features for NEMA 23 or NEMA 34 motors.
  • Pre-assembled dual bearing pivot system with precision shoulder bolt (3/8-16 thread).
  • 3/8” bore motor pulley.
  • Super oilite bearing drive spindle, with 20 tooth gear and 60 tooth timing pulley and matched precision ground shaft.
  • 3mm pitch timing belt.
  • Belt tension cam mechanism.
  • Motor mounting screws and nuts (motor not included).
  • Pro-tension kit
